Web Application Architecture Explained for Modern Developers and Digital Business (2025)

Web application architecture is the foundation of how modern software systems are built, deployed, and scaled. This architecture determines how requests are handled, how components interact, and how reliably your application can serve millions of users.

In our blog post, we’ll break down the essential layers of web application architecture, explore the most used architectural patterns and walk through real-world examples and diagrams.We will help you architect a system that’s scalable, maintainable, and ready for the demands of modern development.

Overview of Web Application Architecture

What is web application architecture?

Web application architecture refers to the conceptual and technical blueprint that defines how a web application’s components interact. The components include front end, back end, databases, and external services. The architecture determines how requests flow through the system, how data is processed and stored, and how various modules scale, communicate, and remain secure.

In essence, web application architecture outlines the foundation for load balancing, authentication, session management and deployment. It impacts not just how the application performs under stress, but also how easily it can evolve over time. Whether you're building a real-time SaaS dashboard or an eCommerce platform, the underlying architecture defines your success in terms of scalability, performance, and maintainability..

What is a web architecture diagram?

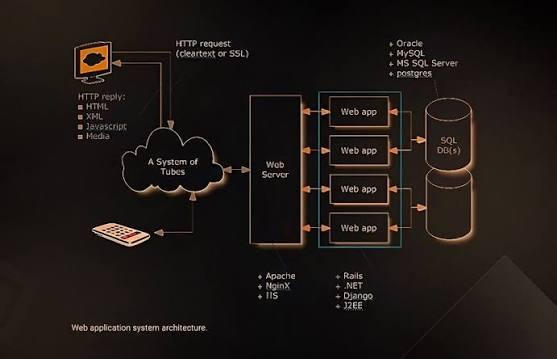

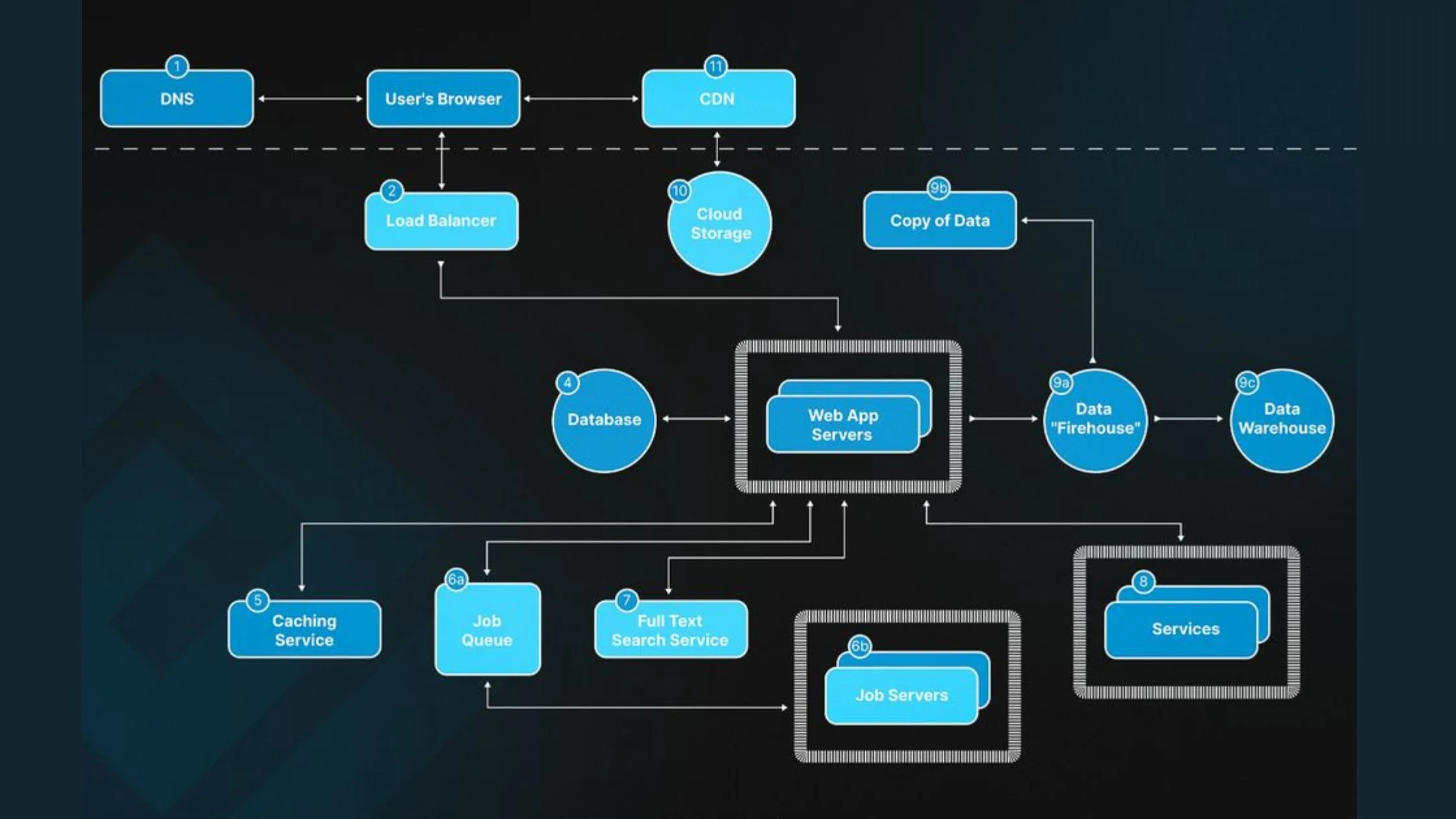

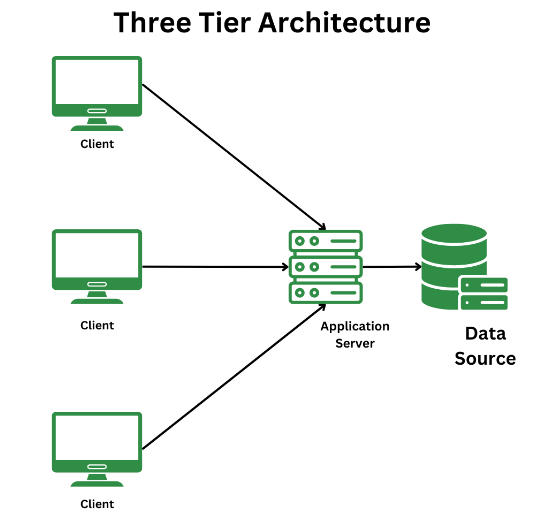

A web application architecture diagram (or simply, architecture diagram for web application) is a visual map that illustrates how the various components of your web app fit together. The diagram includes front-end clients (browsers or mobile devices), web servers, application logic, databases, APIs, middleware, cloud infrastructure, and often third-party integrations.

A high level architecture diagram for web application usually depicts the core layers: presentation, business logic, and data storage.  For enterprise-scale platforms, you’ll also see detailed nodes for microservices, message queues, caching layers, and CI/CD pipelines.

Well-documented website system architecture improves collaboration across teams and makes the system easier to debug, test, and scale. A good website architecture diagram answers questions like:

• How does user input get processed?
• Where is data stored and how is it secured?
• What happens when a service fails?
• How does traffic scale during peak load?

In modern web architecture design, visual clarity is as critical as technical precision. It becomes the single source of truth for dev teams, product owners, and infrastructure engineers alike.

4 Key Components of Web Application Architecture

In any web application architecture, the core structure depends on how each layer works together. A well-designed layout helps manage data, user interaction, and service logic across multiple devices and systems. This section breaks down the four most essential components that form the backbone of web architecture design, whether you're building a startup MVP or scaling an enterprise web application architecture.

1. Frontend

The frontend is what users see and interact with. It includes buttons, forms, visuals, and layouts rendered by the browser. Technologies used here include HTML, CSS, JavaScript, and frontend frameworks like React or Vue.

In a website system architecture, the frontend connects directly with APIs to fetch or send data. It handles dynamic content, user input, and client-side validation. For mobile or desktop platforms, the frontend may also include Progressive Web Apps or hybrid interfaces.

2. Backend

The backend handles all business logic. It processes user actions, communicates with databases, and sends structured data back to the frontend. This layer is typically built with Node.js, Python, Ruby, Java, or .NET.

In modern types of web application architecture, the backend may include multiple services, like payment processing, user management, or email notifications. Backend servers also manage load balancing, authentication, and authorization. They keep the core logic secure and responsive.

3. Database Layer

The database layer stores, retrieves, and updates data. It can be SQL-based (like PostgreSQL or MySQL) or NoSQL (like MongoDB or Cassandra), depending on data structure and scale needs.

In enterprise web application architecture, this layer also includes backups, replication, and sharding. It supports high availability and disaster recovery. A good website system architecture keeps data access fast and consistent, even under high traffic.

4. Middleware & Communication

Middleware connects the frontend, backend, and other services. It handles API requests, authentication tokens, logging, and third-party integrations. It ensures that each layer in the web application architecture can talk to the others smoothly.

Common middleware includes RESTful APIs, GraphQL gateways, and message brokers like RabbitMQ or Kafka. Middleware also manages encryption, load routing, and session control especially in distributed systems or web architecture design that spans multiple servers.

Types of Web Application Architecture

Choosing the right web application architecture depends on your project size, performance needs, and scaling plans. Each model below supports a different strategy in web architecture design, from simple deployments to large enterprise web application architecture.

1. Monolithic Architecture

A monolithic architecture keeps all parts of a web app: UI, logic, and data inside one codebase. This means one deployment, one server, and a tightly coupled system.

This setup works well for small teams and fast MVPs. It simplifies testing and deployment but becomes harder to scale as the app grows. Any update or bug fix requires rebuilding and redeploying the whole system.

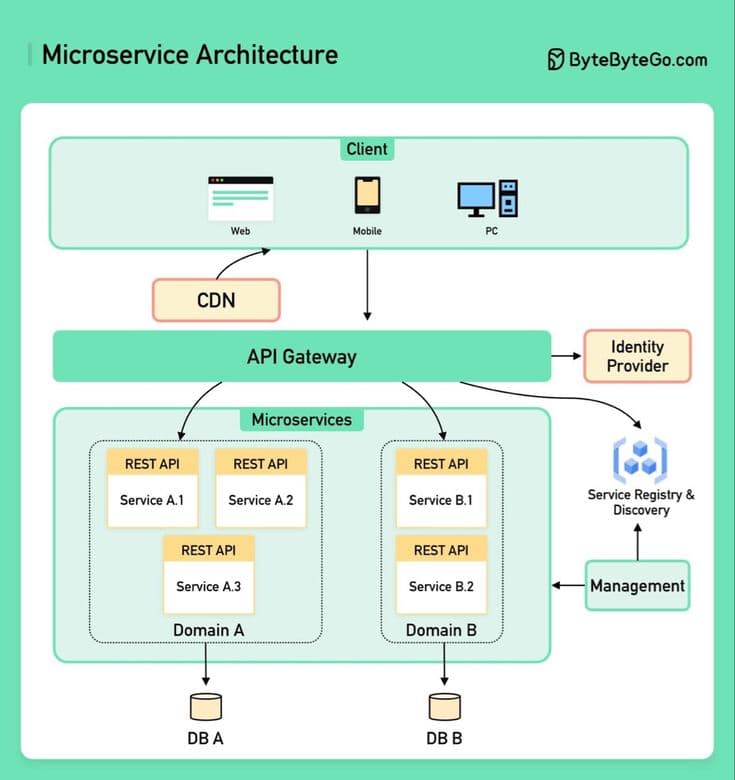

2. Microservices Architecture

Microservices split the application into smaller, independent services. Each service runs its own logic and connects via APIs. For example, billing, inventory, and user login can all be separate microservices.

This web architecture design makes it easier to scale parts of the system individually. It’s the preferred choice for modern enterprise web application architecture because teams can work on different services without conflicts. The trade-off is higher complexity in communication and deployment.

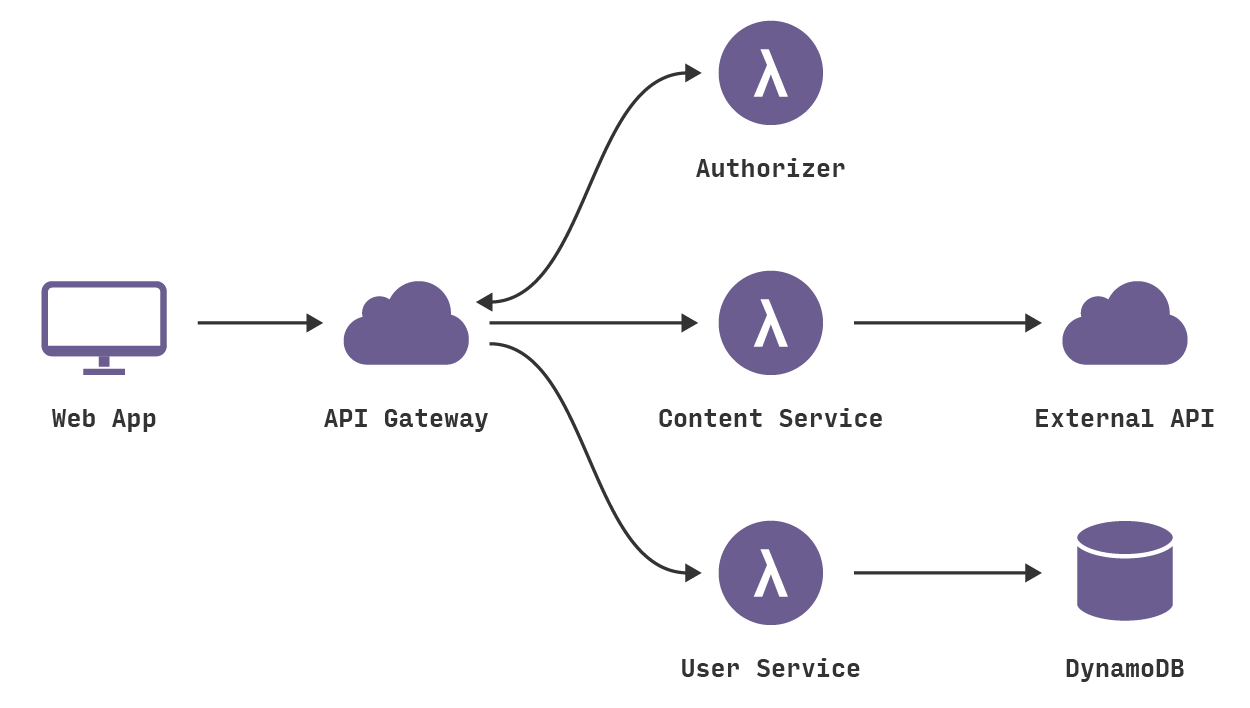

3. Serverless Architecture

In serverless architecture, the cloud provider runs backend code on demand. Developers write functions that trigger from events like form submissions, file uploads, or database changes.

This model reduces server management and scales automatically. You only pay for the time your code runs. It fits projects with variable traffic or small standalone functions. Serverless suits lightweight parts of a larger type of web application architecture, not full systems.

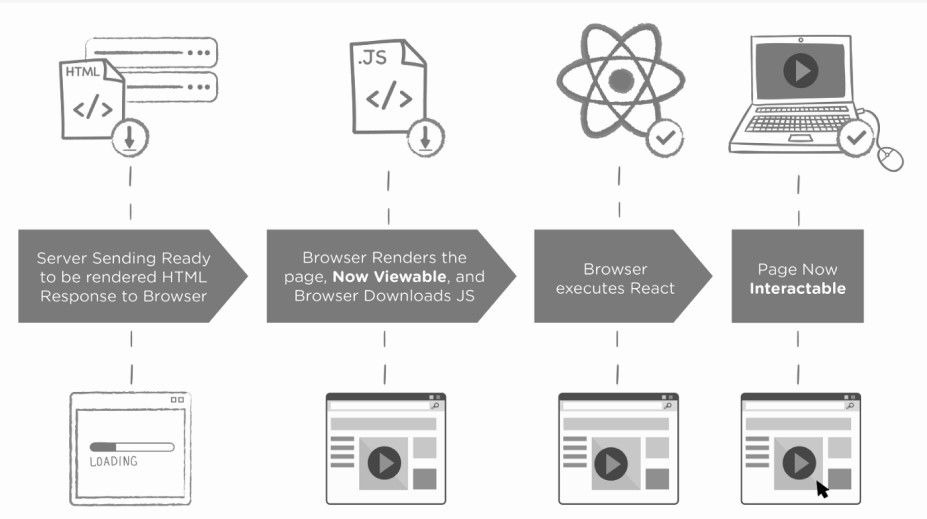

4. Progressive Web App (PWA) Architecture

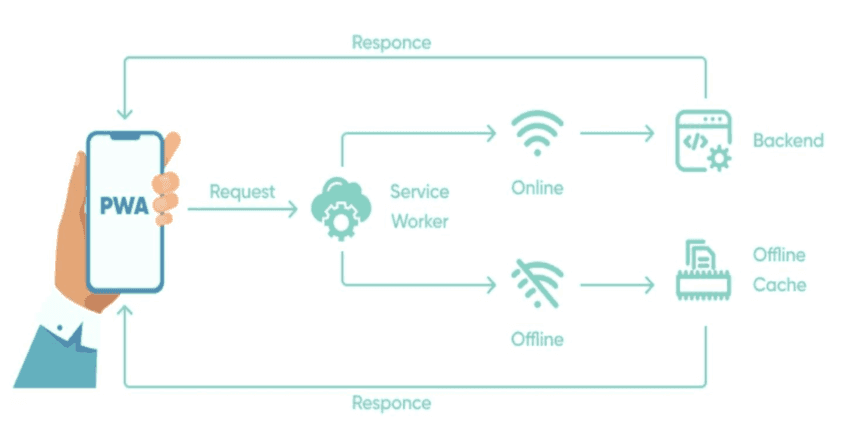

A Progressive Web App delivers an app-like experience through a browser. PWAs work offline, load fast, and can be saved on a user’s device like a native app.

This web application architecture is ideal for mobile-focused products. PWAs reduce the need to build separate apps for iOS and Android. It fits businesses aiming to improve UX without going fully native.

How to Choose the Right Web App Architecture for Your Project

Factors to consider

Designing the web application architecture is one of the first and most critical steps in building any web-based product. This process involves defining the overall structure of the application, how its pages, features, and data flow are organized, and how users navigate across different sections.

Before diving into implementation, it’s important to carefully assess your project’s real needs, business goals, and technical constraints. The following are key factors to evaluate when choosing the right architecture for your web application:

Business Goals

Every web project starts with a purpose. Some apps need to go live fast as MVPs. Others aim for long-term growth and must support millions of users. Architecture should match that timeline.

If your goal is rapid testing or market validation, a simpler setup like monolithic or serverless helps reduce time and cost. If you're building a scalable product from day one, modular options like microservices or multi-tier systems are better suited.

Team Size

Architecture complexity should reflect the size of your development team. Small teams move faster with fewer moving parts. A monolithic structure or basic serverless model keeps workflows clean.

Large teams can handle distributed systems like microservices, where responsibilities are split across services or feature groups. Adding complexity without the team to manage it often creates more problems than it solves.

Scalability

Think about future traffic and data volume. Will your system need to handle spikes in usage or support multi-region deployments? If yes, choose an architecture that supports horizontal scaling — like microservices or cloud-native serverless.

For apps with limited or predictable usage, simpler solutions are enough. Overbuilding for scale too early can waste time and budget.

Budget

Early-stage projects often run on tight budgets. Monolithic and serverless architectures offer lower startup costs. There’s less infrastructure to maintain and fewer services to orchestrate.

In contrast, microservices demand more infrastructure, more testing, and usually more developer hours. Always weigh initial cost vs. long-term flexibility.

Security

Security depends on your app's function. Apps that handle financial transactions, personal health data, or user authentication need tighter control. That means layered architectures, role-based access, and careful separation of services.

For lower-risk apps, simpler models may be enough. Either way, your website system architecture must follow modern security practices like encryption, rate-limiting, and API protection.

Maintenance

No architecture is set-it-and-forget-it. Some require more ongoing effort. Monoliths are easier to maintain at small scales but harder to change later. Microservices and enterprise web application architectures offer easier updates per service, but come with their own complexity. Choose an architecture your team can realistically maintain.

Time to Market

If launch speed matters, pick a setup with fewer dependencies. Serverless systems or ready-made frameworks cut build time by offloading backend concerns. Monolithic apps also speed up delivery because everything lives in one codebase. For teams that need to move fast, complexity is the enemy. Ship early, scale later.

Architecture selection matrix or checklist

Purpose and industry choice

Choosing the right web application architecture should always align with the core purpose of the project and the industry you’re targeting. Each type of product from SaaS tools to eCommerce platforms brings different functional needs, traffic patterns, and scalability expectations. Below is a breakdown to guide you:

MVPs and Early-Stage Startups

When building an MVP (Minimum Viable Product), the priority is speed and cost-efficiency. The product needs to ship fast, validate user needs, and stay flexible for changes.

• Recommended architecture: Monolithic
• Why: A single codebase is easier to manage with a small team. Hosting and deployment are simple.
• Use case: Internal dashboards, booking platforms, single-function web tools.

SaaS and Enterprise Platforms

SaaS applications and enterprise tools demand high availability, modular development, and long-term scalability. These systems evolve constantly, often requiring role-based access, APIs, and complex logic.

• Recommended architecture: Microservices
• Why: Independent services allow teams to work in parallel, scale specific features, and update modules without affecting the whole system.
• Use case: CRM platforms, B2B SaaS, HR or finance tools

eCommerce and Multi-tenant Marketplaces

eCommerce platforms development must handle spikes in traffic, product catalogs, user authentication, and real-time updates. Performance and uptime directly impact revenue.

• Recommended architecture: Microservices or Serverless (for specific modules)
• Why: Microservices support scalability. Serverless works well for handling event-based processes like checkout, email notifications, or real-time inventory updates.
• Use case: Online stores, rental marketplaces, reseller platforms.

Real-Time Apps and On-Demand Services

Apps that support real-time communication, instant booking, or live tracking require low-latency, scalable backends.

• Recommended architecture: Serverless
• Why: Serverless functions scale instantly based on demand and reduce idle cost when usage is low.
• Use case: Chat apps, food delivery platforms, ride-hailing systems.

Content-Heavy Platforms and Media

For media portals, streaming platforms, or blogs with high content volume, caching and content delivery are crucial.

• Recommended architecture: Monolithic (initially) with CDN integration; migrate to microservices as complexity grows.
• Why: You can get started faster, then modularize features like recommendation engines, user accounts, or video processing later.
• Use case: Online magazines, video platforms, learning portals.

Shopify - Examples of Web Application Architecture

Shopify is one of the world’s largest eCommerce platforms, serving millions of merchants with high-performance and customizable store solutions. To support its global scale, Shopify evolved from a Ruby on Rails monolith into a hybrid architecture combining microservices, APIs, and cloud-native infrastructure.

Here's how to build Shopify's web app architecture:

Step 1: Determine the web app’s purpose and requirements

Shopify is an eCommerce SaaS platform built to help merchants create, manage, and scale online stores. Key requirements include:

• High scalability: to support millions of active merchants globally.
• Security: especially around payment processing, customer data, and checkout.
• Modularity: to support app integrations and storefront customizations.
• Real-time performance: for live order processing, cart management, and inventory sync.

Step 2: Identify web application components

Shopify’s architecture includes:

• User management: for account creation, roles, login.
• Storefront service: product browsing, cart, checkout.
• Admin dashboard: merchant configuration, app settings.
• Inventory and order management: SKU sync, stock levels, order status.
• Payments: processing, fraud detection, invoicing.
• Webhooks: for real-time event processing (orders, updates).
• Embedded apps: loaded via iframe within Shopify admin.
• APIs: GraphQL & REST for third-party integrations.

Step 3: Select technology stack

Shopify uses:

• Backend: Ruby on Rails (monolith), gradually migrating to microservices in Go and Java.
• Frontend: React + Polaris (for consistent UI in embedded apps).
• APIs: REST + GraphQL.
• Infrastructure: Kubernetes on Google Cloud Platform.
• Queue/Event systems: Kafka, Redis.
• Databases: MySQL + Redis + custom sharding layer for scaling.
• CDN: Fastly and Cloudflare for edge delivery.

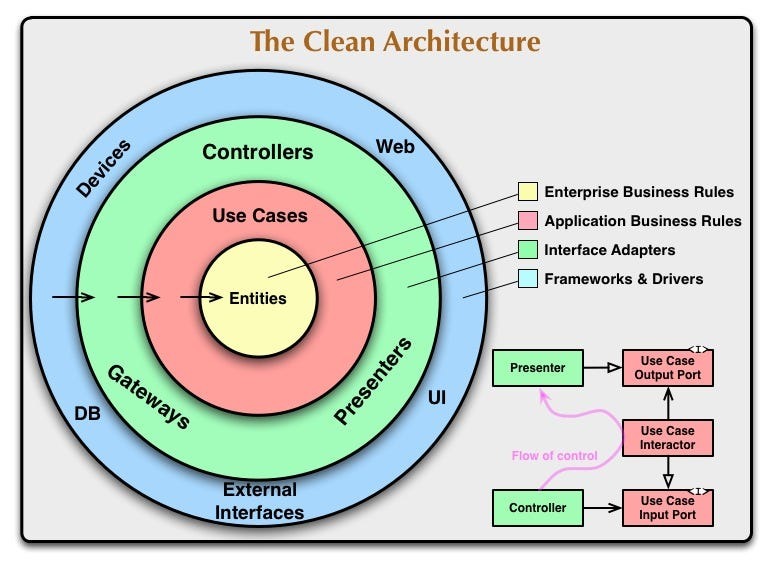

Step 4: Design the layers of web app architecture

Step 5: Data storage and management

• Data is shared by store ID across MySQL databases.
• Redis is used for caching frequently accessed keys.
• Shopify uses background workers (Sidekiq, Resque) for asynchronous tasks like email, webhooks, and image processing.

Step 6: Scalability and performance

• Kubernetes clusters auto-scale services based on traffic.
• Kafka is used for event-driven updates across services (e.g., product change triggers inventory sync).
• CDN for asset and storefront delivery worldwide.

Step 7: MVP and evolution

Shopify started as a Rails monolith in 2006. As the business scaled, they:

• Migrated large modules (e.g., Payments, Orders, Shipping) into microservices.
• Introduced modular app structure for third-party development.
• Shifted to Kubernetes for global deployment and infrastructure scalability.

Shopify’s journey from a monolith to a hybrid microservice architecture highlights how web application architecture can evolve over time based on product scale, developer velocity, and business needs.

How Golden Owl Designs Scalable Web App Architectures for Clients

At Golden Owl, every web application architecture project begins with a simple belief: your architecture should solve business problems, not create new ones. We start by analyzing your product’s lifecycle from MVP to long-term scaling. Based on this, we create a web architecture design plan that balances performance, cost-efficiency, and time to market.

Our architecture diagrams typically cover:

• Frontend clients: Browser or mobile access via responsive UIs.
• Microservices or modular backends: Depending on your scale and team size.
• CI/CD pipelines: Set up from the beginning with GitLab/GitHub Actions and Docker.
• Load balancers & auto-scaling groups: Built with AWS/GCP for global performance.
• Secure database layers: With proper access controls, backups, and encryption.
• Event queues, caching, and API gateways: For real-time processing and third-party integrations.

This web application architecture diagram is not just a static document. It evolves alongside your product and supports smooth onboarding for both developers and business teams.

Why Clients Trust Golden Owl’s Architecture

• Cross-functional product squads: Every architecture plan includes input from backend, frontend, QA, DevOps, and PMs. That leads to better alignment and fewer gaps between planning and execution.
• Agile with architecture in mind: Even with short sprints and changing requirements, our system designs are modular  so one feature doesn’t break the whole system.
• Security-first development: We implement OWASP best practices, regular audits, and role-based access early in the architecture phase.
• Scalability & performance optimization: From Redis caching layers to CDN acceleration, we bake performance into the system core, not as an afterthought.

 Applied Best Practices in Web Architecture Design

Golden Owl applies top engineering principles and proven tools to every project:

• Load balancing for reliability and uptime.
• CI/CD pipelines for fast, safe deployments.
• DevOps automation for environment consistency and rollback support.
• Monitoring & alerting with tools like Grafana and New Relic.
• Immutable infrastructure & containerization using Docker and Kubernetes.

Final Thoughts

Web application architecture is the foundation of how your digital product performs, grows, and survives real-world demands. Whether you're building a SaaS dashboard, CRM, marketplace, or internal enterprise tool, your architecture will directly shape cost, user experience, security, and developer velocity.

If you’re unsure how to architect your web application, consider partnering with an experienced team like Golden Owl. We bring deep knowledge of web architecture design, performance best practices, and modern DevOps workflows to help you build scalable, secure, and maintainable software.

FAQS

Q1. What is the difference between monolithic and microservices architecture?

Monolithic systems have all components in a single codebase. Microservices split functions into independent services, making them easier to scale and maintain but harder to coordinate initially.

Q2. When should I use serverless architecture?

Serverless is best for apps with unpredictable traffic, rapid prototyping, or event-driven tasks. It offloads infrastructure management but may introduce vendor lock-in.

Q3. Do I need a high-level web application architecture diagram?

Yes. A clear architecture diagram helps dev teams, stakeholders, and QA align on structure, dependencies, and infrastructure needs. It reduces miscommunication and technical debt.
